601-330-097




601-330-097

601-330-097

601-430-097

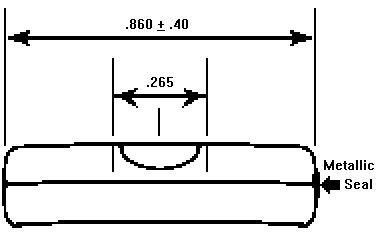

601-330-097-Drawing

SPECIFICATIONS:

Nominal Diameter .275″                            Nominal Sensitivity 45 Min. = .100 inch ± 5′
Minimum Diameter .267″ Bubble Size .220″ – .240″
Maximum Diameter .283″ Index Space .265″
Nominal Length .860″ Line Width .010″
Minimum Length .820″ Long Line .400″
Maximum Length .900″ Fluid Clear

Made In USA
