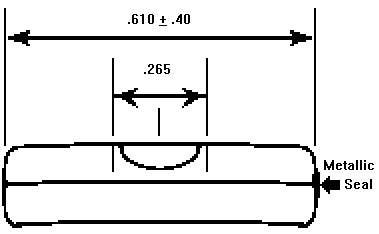

601-430-019-Drawing

SPECIFICATIONS:

Nominal Diameter           .236″                                Nominal Sensitivity 50 Min. = .100 inch ± 5′
Minimum Diameter .228″ Bubble Size .220″ – .240″
Maximum Diameter .244″ Index Space .265″
Nominal Length .610″ Line Width .010″
Minimum Length .570″ Long Line .350″
Maximum Length .650″ Fluid Yellow
