601-430-043

601-430-043

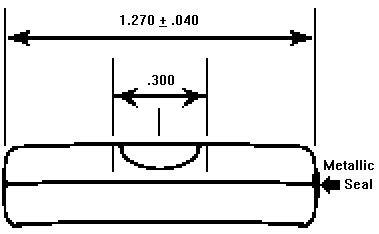

601-430-043-Drawing

SPECIFICATIONS:

Nominal Diameter	.275″	Nominal Sensitivity	27 Min. = .100 inch ± 3′
Minimum Diameter	.267″	Bubble Size	.260″ – .280″
Maximum Diameter	.283″	Index Space	.300″
Nominal Length	1.270″	Line Width	.010″
Minimum Length	1.230″	Long Line	.410″
Maximum Length	1.310″	Fluid	Yellow
