601-431-005



601-431-005

601-431-005

601-431-005

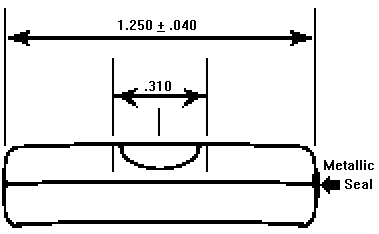

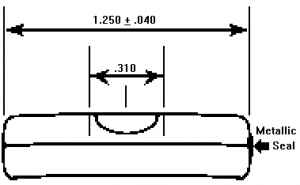

601-431-005-Drawing

SPECIFICATIONS:

Nominal Diameter .275″                            Nominal Sensitivity 40 Min. = .100 inch ± 4′
Minimum Diameter .267″ Bubble Size .280″ – .300″
Maximum Diameter .283″ Index Space .310″
Nominal Length 1.250″ Line Width .010″
Minimum Length 1.210″ Long Line .412″
Maximum Length 1.290″ Fluid Yellow

Made In USA
