Mountable Assemblies

General purpose vials mounted on acrylic and ABS bases.

Minimum order: $50.00

Prism Vials

Prism Vials

Prism Vials

FLUID COLOR: Various  DIAMETER: Various  HEIGHT: Various

  • Used for any multi-directional leveling need.
  • A low-cost vial with a clear acrylic top and black or white base.
  • Minimum order: $50.00





[Read more…]

601-500-014

601-500-014

601-500-014

39mm x 29mm

Front-to-Back or Side-to-Side leveling

Screw Holes for Permanent Mounting

Call 800-550-8425 for pricing

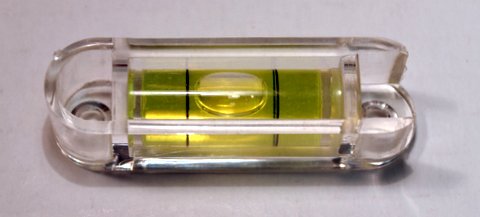

601-104-005

601-104-005

601-104-005

FLUID COLOR: Green HEIGHT: 2 1/8″  CENTER HOLE: 1.7″

  • Significant cost savings.
  • Substantial reduction in lead time.
  • Allow multiple applications.
  • Durable protective cover.
  • Block vials can be used in the vertical and horizontal application.
  • Horizontal mount delivers a highly visible 360° bubble reading.
  • Available in stock sizes or custom-made to your specifications.
  • Sensitivity around 30 minutes per 2mm of movement.
  • When requesting quotation for custom acrylic vials, provide complete specifications and quantities.
  • Minimum order: $50.00
  • Call for details.

601-104-008

Drawing

Drawing

601-104-008

601-104-008

FLUID COLOR: Green LENGTH: 34mm HEIGHT: 22mm WIDTH: 14mm

  • Significant cost savings.
  • Substantial reduction in lead time.
  • Allow multiple applications.
  • Durable protective cover.
  • Block vials can be used in the vertical and horizontal application.
  • Horizontal mount delivers a highly visible 360° bubble reading.
  • Available in stock sizes or custom-made to your specifications.
  • Sensitivity around 30 minutes per 2mm of movement.
  • When requesting quotation for custom acrylic vials, provide complete specifications and quantities.
  • Minimum order: $50.00
  • Call for details.

601-506-001

STOCK NUMBER DESCRIPTION
601-506-001 Glass vial set in powder-coat black finish tubular holder, tube diameter .442″. Two flathead screws 8 x 32 x 1″ long. Center hole to center hole = 4.833″.



Significant cost savings with substantial reduction in lead time.

Straight tube exterior and barrel-shaped interior allow multiple applications.

Lines are applied in a full 360 axis for ease of orientation and assembly.

Tubular vials are available in stock sizes or custom-made to your specifications. When requesting quotation for custom acrylic vials, provide complete specifications and quantities.

Sensitivity around 30 minutes per 2mm of movement.

Minimum order: $50.00

601-500-004

CROSS CHECK VIAL

Acrylic cross-check vial set in black holder with magnet, green fluid, 2 holes for mounting.

  • Straight tube exterior and barrel-shaped interior allow multiple applications.
  • Significant cost savings with substantial reduction in lead time.
  • Lines are applied in a full 360 axis for ease of orientation and assembly.
  • Tubular vials are available in stock sizes or custom-made to your specifications.
  • Sensitivity around 30 minutes per 2mm of movement.
  • Minimum order: $50.00

601-500-003

601-500-003

601-500-003

STOCK NUMBER: 601-500-003 DESCRIPTION: Acrylic cross-check vial set in black holder, green fluid, 2 holes for mounting.

Significant cost savings with substantial reduction in lead time.

Straight tube exterior and barrel-shaped interior allow multiple applications.

Lines are applied in a full 360 axis for ease of orientation and assembly.

Tubular vials are available in stock sizes or custom-made to your specifications. When requesting quotation for custom acrylic vials, provide complete specifications and quantities.

Sensitivity around 30 minutes per 2mm of movement.

Minimum order: $50.00

601-500-002

601-500-002

601-500-002

STOCK NUMBER DESCRIPTION
601-500-002 Glass vial set in black holder, green fluid, 2 holes for side mounting.

Significant cost savings with substantial reduction in lead time.

Straight tube exterior and barrel-shaped interior allow multiple applications.

Lines are applied in a full 360 axis for ease of orientation and assembly.

Tubular vials are available in stock sizes or custom-made to your specifications. When requesting quotation for custom acrylic vials, provide complete specifications and quantities.

Sensitivity around 30 minutes per 2mm of movement.

Minimum order: $50.00

601-500-001

601-500-001

601-500-001

STOCK NUMBER DESCRIPTION
601-500-001 Glass vial set in black holder, green fluid, 2 holes for end mounting.

Significant cost savings with substantial reduction in lead time.

Straight tube exterior and barrel-shaped interior allow multiple applications.

Lines are applied in a full 360 axis for ease of orientation and assembly.

Tubular vials are available in stock sizes or custom-made to your specifications. When requesting quotation for custom acrylic vials, provide complete specifications and quantities.

Sensitivity around 30 minutes per 2mm of movement.

Minimum order: $50.00
