 601-330-194 |

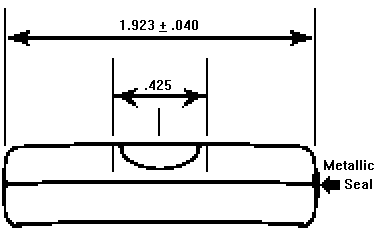

 601-330-194-Drawing
|
SPECIFICATIONS:
Long Line
| Nominal Diameter | .354″ | Nominal Sensitivity | 35 Min. = .100 inch ± 4′ |
| Minimum Diameter | .346″ | Bubble Size | .360″ – .380″ |
| Maximum Diameter | .362″ | Index Space | .425″ |
| Nominal Length | 1.923″ | Line Width | .010″ |
| Minimum Length | 1.883″ | Long Line | .515″ |
| Maximum Length | 1.963″ | Fluid | Clear |
