601-330-197

601-330-197

601-330-197


601-430-197

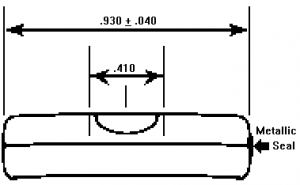

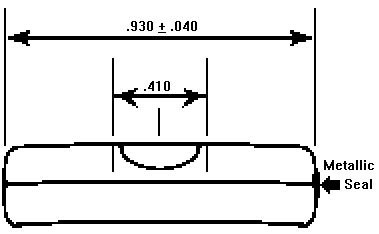

601-330-197-Drawing

SPECIFICATIONS:

Nominal Diameter .315″                            Nominal Sensitivity 35 Min. = .100 inch ± 4′
Minimum Diameter .307″ Bubble Size .360″ – .390″
Maximum Diameter .322″ Index Space .410″
Nominal Length .930″ Line Width .010″
Minimum Length .890″ Long Line .500″
Maximum Length .970″ Fluid Clear

Made In USA
