601-430-148



601-430-148

601-430-148

601-430-148

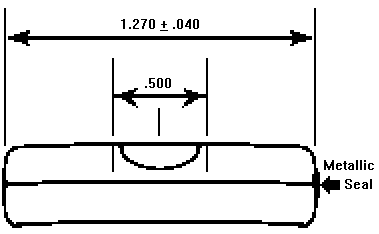

601-430-148-Drawing

SPECIFICATIONS:

Nominal Diameter .315″                            Nominal Sensitivity 43 Min. = .100 inch ± 4′
Minimum Diameter .307″ Bubble Size .460″ – .480″
Maximum Diameter .322″ Index Space .500″
Nominal Length 1.270 “ Line Width .015″
Minimum Length 1.230 “ Long Line .487″
Maximum Length 1.310″ Fluid Yellow

Made In USA
