601-330-207

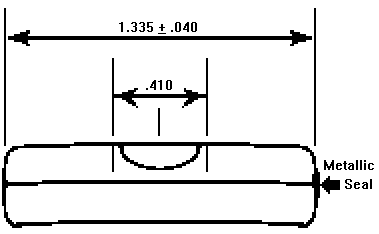

601-330-207	601-330-207-Drawing

SPECIFICATIONS:

Nominal Diameter	.315″	Nominal Sensitivity	57 Min. = .100 inch ± 5′
Minimum Diameter	.307″	Bubble Size	.370″ – .390″
Maximum Diameter	.322″	Index Space	.410″
Nominal Length	1.335″	Line Width	.010″
Minimum Length	1.295″	Long Line	.500″
Maximum Length	1.375″	Fluid	Clear
