601-330-208

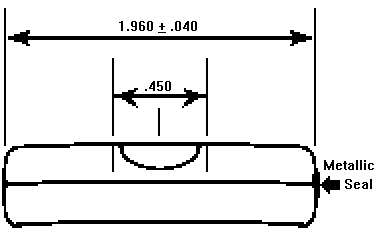

601-330-208	601-330-208-Drawing

SPECIFICATIONS:

Nominal Diameter	.315″	Nominal Sensitivity	35 Min. = .100 inch ± 4′
Minimum Diameter	.307″	Bubble Size	.410″ – .430″
Maximum Diameter	.322″	Index Space	.450″
Nominal Length	1.960″	Line Width	.010″
Minimum Length	1.920″	Long Line	.435″
Maximum Length	2.000″	Fluid	Clear
