601-430-149

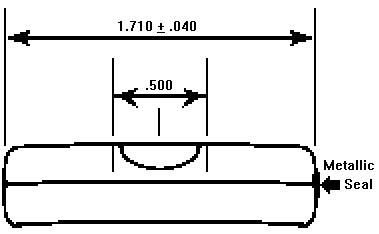

601-430-149	601-430-149-Drawing

SPECIFICATIONS:

Nominal Diameter	.315″	Nominal Sensitivity	35 Min. = .100 inch ± 4′
Minimum Diameter	.307″	Bubble Size	.460″ – .480″
Maximum Diameter	.322″	Index Space	.500″
Nominal Length	1.710 “	Line Width	.015″
Minimum Length	1.670 “	Long Line	.487″
Maximum Length	1.750″	Fluid	Yellow
