601-431-001

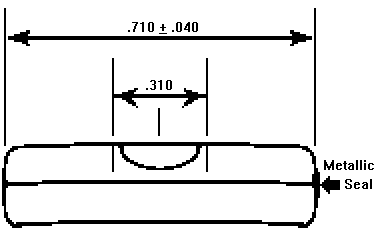

601-431-001	601-431-001-Drawing

SPECIFICATIONS:

Nominal Diameter	.315″	Nominal Sensitivity	10 Min. = .100 inch ± 1′
Minimum Diameter	.307″	Bubble Size	.280″ – .300″
Maximum Diameter	.322″	Index Space	.310″
Nominal Length	.710″	Line Width	.010″
Minimum Length	.670″	Long Line	.412″
Maximum Length	.750″	Fluid	Yellow
