601-431-002

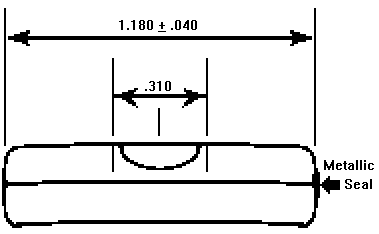

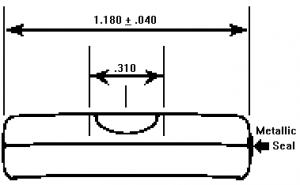

601-431-002	601-431-002-Drawing

SPECIFICATIONS:

Nominal Diameter	.275″	Nominal Sensitivity	10 Min. = .100 inch ± 1′
Minimum Diameter	.267″	Bubble Size	.280″ – .300″
Maximum Diameter	.283″	Index Space	.310″
Nominal Length	1.180″	Line Width	.010″
Minimum Length	1.140″	Long Line	.412″
Maximum Length	1.220″	Fluid	Yellow
